Ahuja AWM-495VHL | Professional PA Wireless Microphone System
Product Overview

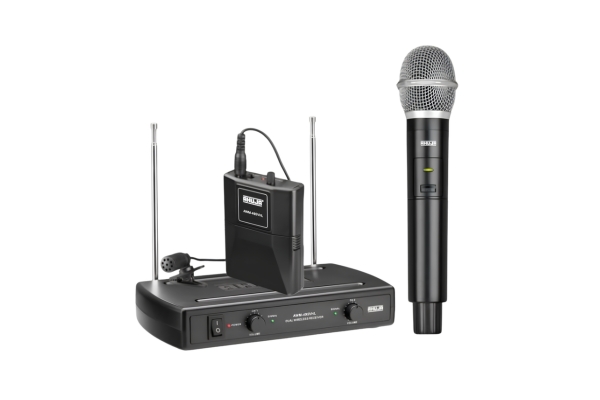

The Ahuja AWM-495VHL is an affordable, high-performance VHF Wireless Microphone System designed to deliver clear and reliable audio. This comprehensive system features a highly sensitive dual-channel non-diversity receiver and comes equipped with two types of wireless microphones: a versatile hand-held dynamic microphone and a discreet tie-clip condenser microphone. Under ideal working conditions, the AWM-495VHL ensures an effective, long-distance coverage of more than 150 feet, making it perfect for a wide variety of PA applications.
Key Features
- Dual-Channel Setup: A compact and lightweight system featuring one non-diversity receiver and two microphones operating on separate Quartz Crystal Locked VHF High Band frequencies.
- Versatile Microphone Combo: Includes a cardioid dynamic hand-held microphone (operates on Channel 1) and an omnidirectional condenser tie-clip microphone (operates on Channel 2).
- Interference-Free Reception: Equipped with an internal antenna in the hand-held microphone and two fully extendable telescopic antennas on the receiver for clear, distortion-free audio.
- Flexible Audio Outputs: The receiver provides individual audio outputs at OUT 1 and OUT 2, as well as a mixed output at OUT 1+2.
- User-Friendly Controls: Both microphones feature a convenient 3-position slide switch for 'Audio On', 'Audio Mute' (Standby), and 'Off'.
- Visual Indicators: The receiver includes a Red power LED, plus Green LEDs that indicate signal reception for Channel-1 and Channel-2.
- Power Efficiency: Microphones are powered by standard 9V dry batteries delivering 6-8 hours of battery life, while the receiver operates on 9V DC via the supplied AC Adaptor.
- Frequency Availability: The system is available in 5 different frequency sets to accommodate multi-system setups.
Technical Specifications
Receiver Specifications
Feature | Specification |
Frequency Stability | ± 0.005% Quartz Crystal Controlled |
Receiving Method | Non-diversity |
S/N Ratio | =100dB |
Distortion | =0.5% |
Frequency Response | 50-15,000Hz |
Power Requirement | 240V AC 50Hz for AC adaptor (supplied) |
Dimensions | W210 x H42 x D152 mm |
Weight | 0.70kg |
Microphone Specifications
Feature | Hand-Held Microphone (Channel 1) | Tie-Clip Microphone (Channel 2) |
Microphone Element | Dynamic, cardioid | Condenser, omnidirectional |
RF Output Power | 15mW (Max.) | 10mW (Max.) |
Modulation Mode | FM (F3E) | FM (F3E) |
Frequency Response | 50-15,000Hz | 80-12,000Hz |
Dynamic Range | 100dB | 80dB |
Battery Life | 6-8 hrs. with 9V battery | 6-8 hrs. with 9V battery |
Dimensions | Ø52 (L242) mm | W65 x H32 x D107 mm |
Weight (w/o battery) | 0.20kg | 0.11kg |
What's in the Box (Accessories)

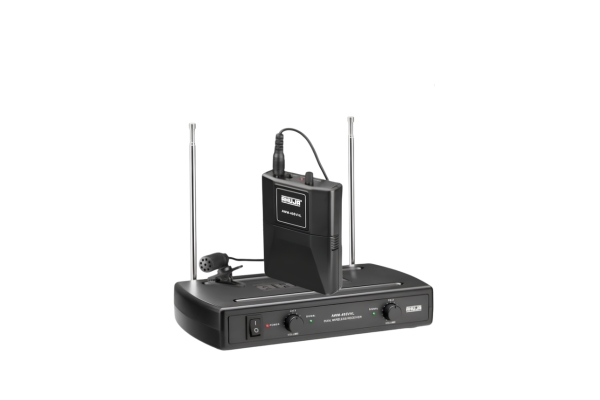

- 1 x AWM-490VHL Dual Channel Receiver

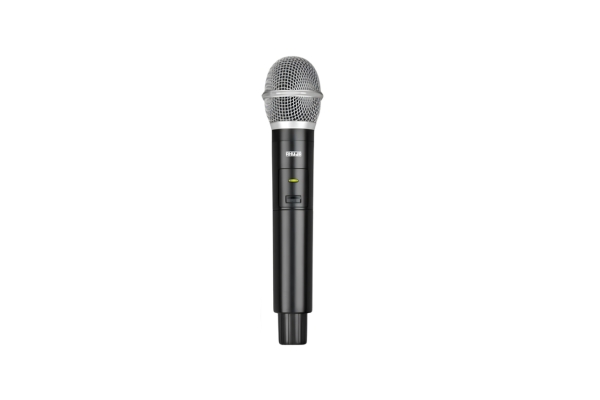

- 1 x Hand-held Dynamic Microphone
- 1 x Tie-clip Condenser Microphone (Body-pack transmitter)
- 1 x Connection Cable
- 1 x AC Adaptor
- 2 x 9V Battery
