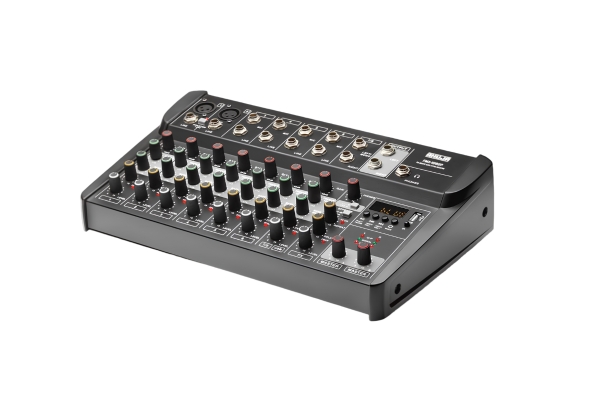

Ahuja FMX-108DP | 8 Channel PA Mixer with Digital Effects
Product Overview
The Ahuja FMX-108DP is a compact and reliable professional PA Mixer that is aesthetically superior and easily portable. Designed to deliver exceptional audio control, this mixer features an integrated MP3 digital player with recording and playback through USB, as well as a Bluetooth facility for wireless audio streaming. Equipped with two balanced XLR microphone inputs with switchable +48V Phantom supply and a built-in digital effects processor, the FMX-108DP provides everything you need for live performances, public address setups, and basic recording.
Key Features
- Versatile Inputs: Provided with two balanced XLR microphone inputs featuring switchable +48V Phantom supply for condenser microphones.
- Flexible Connectivity: Up to four low impedance microphones and up to six line-level signal sources can be connected in either balanced or unbalanced configurations through 6.3 mm (1/4") stereo jack sockets.
- Digital MP3 & Bluetooth: Features a built-in MP3 digital player capable of recording and playback through USB, alongside Bluetooth pairing capabilities for mobile phones and laptops.
- Built-in Digital Effects: Includes a digital effects processor with adjustable DELAY, REPEAT, and LEVEL controls, plus a dedicated Effects ON/OFF switch.
- Independent Channel Control: Each channel boasts a GAIN control, a two-band equalizer with active BASS & TREBLE controls, and a separate FX (effects) level control.
- Visual Monitoring: Individual PEAK LEDs on each channel indicate when the input signal is approaching saturation, while MASTER output features SIGNAL and CLIP LEDs for optimum level setting.
- Stereo Channel Selection: Includes one independent stereo input channel with a push switch for easy selection between Ch 7/8 and the USB channel.
- Comprehensive Outputs: Provides line level LEFT & RIGHT outputs and a dedicated Headphone output with an independent volume control through 6.3 mm (1/4") stereo jack sockets.
Technical Specifications
General Specifications
Feature | Specification |
Frequency Response | 25Hz - 20 kHz (-1dB) |
THD (Total Harmonic Distortion) | < 0.1% |
Equalisation | Bass: ±15dB at 80 Hz / Treble: ±15dB at 12kHz |
Signal-to-Noise (S/N) Ratio | > 68dB |
Digital Recorder | MP3 Recorder & Playback |
Delay Range | Variable from 20 to 300ms |
Power Supply | 220-240V AC 50Hz |
Dimensions (W x H x D) | W345 x H75 x D210mm |
Weight | 1.85kg approx. |
Input & Output Specifications
Feature | Specification |
MIC Input (Impedance/Gain) | 2kΩ Balanced / 65dB 1kΩ Unbalanced / 65dB |
LINE Input (Impedance/Gain) | 20kΩ Balanced / 45dB 10kΩ Unbalanced / 45dB |
Line Output L/R (Nominal) | 0dBu (775mV) |
Line Output L/R (Maximum) | +21dBu (9V) |
Output Impedance | 600Ω |
Headphone Output | 200mV at 8Ω |
Additional Functions
- Remote Control Included: The mixer includes an IR remote control that allows you to manage the MP3 player, select EQ presets (POP, ROCK, JAZZ, CLASSIC, LF CUT, NORMAL), and control volume remotely.
- Protection Circuitry: Safely protected by an AC fuse rated at 1Amp 250V (T 1A L) to prevent excessive current flow.
