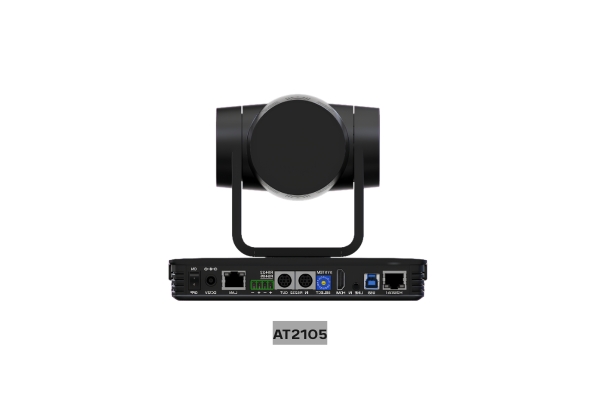

ATVI 2105 Full HD PTZ Video Camera

60 FPS, Auto-Tracking, POE

Product Overview

Capture every moment perfectly with the ATVI 2105 Full HD PTZ Video Camera.

Engineered as a great choice to track and capture the speaker in classrooms and conferences, this versatile camera delivers smooth, high-definition video at a 60 fps frame rate.

It features advanced image processing and AI-driven human detection with real-time zone tracking, ensuring your subject is always in focus. Furthermore, Power over Ethernet (PoE) functionality guarantees a completely hassle-free installation process for IT teams and integrators.

Core Highlights & Key Features

• Fluid 60 fps Video Quality: Powered by a 1/2.8 inch high-quality HD CMOS sensor boasting 2.07 megapixels (16:9 aspect ratio), the camera records and streams fluid Full HD video up to 1080P60.

• AI Auto-Tracking Technology: Automate your broadcasts effortlessly with built-in AI human detection and real-time zone tracking, keeping presenters perfectly framed as they move around the room.

• Versatile Zoom Capabilities: Adapt to various room sizes with models supporting 12X to 30X optical zoom. Specific models include 12X (f=3.9~46.8mm) and 20X (f=5.2~98mm) lenses to capture sharp details from a distance.

• Advanced Image Processing: Maintain clear, professional feeds in difficult lighting with 2D & 3D Digital Noise Reduction (DNR) and a high Signal-to-Noise Ratio (SNR ≥55dB). Users can easily tweak settings via dynamic level adjustments (DRC), brightness, color, saturation, and contrast controls.

• Extremely Quiet PTZ Movement: The precision motor allows for ultra-quiet, rapid panning (±170° at speeds of 0.1-100°/sec) and tilting (-30°~+90° at speeds of 0.1-45°/sec) without disrupting the learning or meeting environment.

Ports, Connectivity & Network Protocols

The ATVI 2105 offers extensive interface options to integrate seamlessly into any existing AV setup:

• PoE & Power Options: Utilize Power over Ethernet (PoE) via the LAN interface to transmit video, control, and power over a single cable, or use the standard DC12V power adapter.

• Comprehensive Video Outputs: Equipped with an array of output options including HDMI, SDI, LAN, and 1 x USB 3.0 (Type B, compatible with USB 2.0). It supports dual stream output and multiple video compression formats like H.265, H.264, and MJPEG.

• Audio Integration: Features a double track 3.5 mm linear audio input interface utilizing AAC compression.

• Extensive Network Support: Natively supports advanced streaming and networking protocols including RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, and optional NDI.

• Professional Control Interfaces: Includes 2 X RS 232 (IN/OUT), 1 X RS 485, and RS422 ports supporting VISCA, Pelco-D, and Pelco-P control protocols.

Technical Specifications
