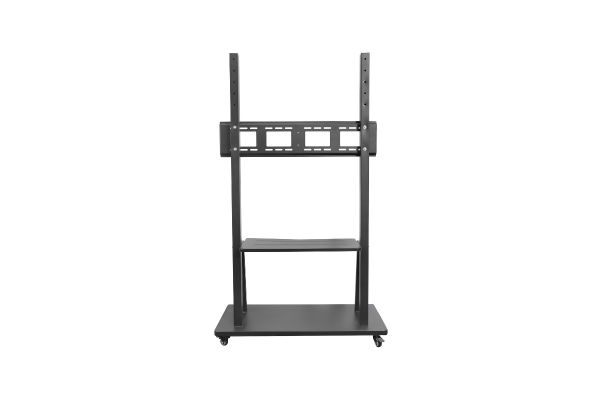

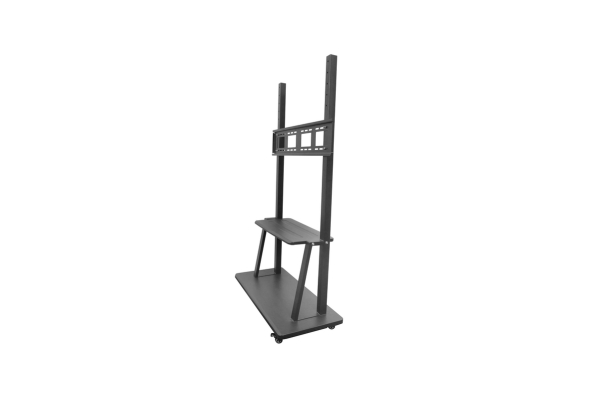

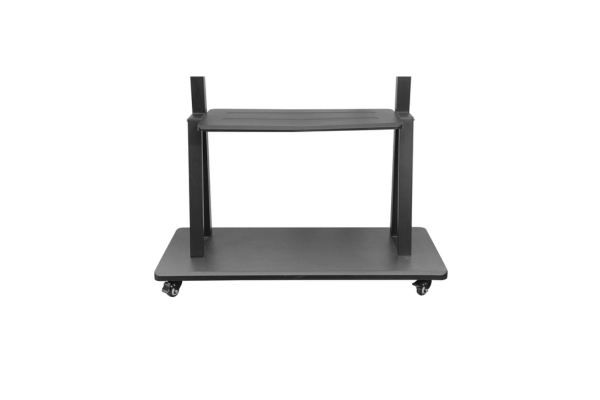

atvi Height Adjustable Trolleys | Flexible Flat Panel Solutions
Product Overview
The atvi Height Adjustable Trolleys, manufactured by Audipack, provide unparalleled flexibility for displaying touch screen monitors, interactive boards, and large flat panels. Designed specifically for environments with varying users, such as classrooms, training rooms, and conference centers, these trolleys allow you to change the user height effortlessly—often with just the push of a button. With durable, scratch-resistant materials, a secure lockable system, and a robust design, atvi's Plug & Play trolleys offer a safe, reliable, and adaptable solution for modern educational and corporate spaces.
Key Features
- Effortless Adjustability: Easily change the presentation height to accommodate different users, making it ideal for the educational sector.
- Touch Screen Optimized: Specially designed to handle the weight and interaction requirements of touch screens and interactive boards.
- Durable & Scratch-Resistant: Manufactured using standard private-designed durable materials that are easy to clean and highly resistant to scratches.
- Theft-Delay Security: Features standard theft-delay locking mechanisms to keep your expensive equipment safe when mounted with an Audipack bracket.
- Flexible Mounting System: Standard interfaces support VESA 400 and 600, allowing for easy screen replacement or switching between touch screens and interactive boards without major mechanical adjustments.
- Safe & Mobile: Equipped with lockable castors for safe transport and stable positioning, along with integrated cable management for a clean, professional look.
Technical Specifications by Model
DFS-120E | Electric Double Column Trolley
- Dimensions (W x D x H): 1400 x 797 x 1950 mm
- Net Weight: 53 Kg
- Height Adjustment: 700 - 1800 mm (center screen)
- Mounting Interface: L&S 5, VESA width 400 & 600, VESA height 400
- Power Supply: 230 VAC 50-60 Hz
- Max Screen Size: 120" | Max Weight: 70 Kg
FSW-904E | Electric Single Column Trolley
- Dimensions (W x D x H): 900 x 560 x 1804 mm
- Net Weight: 59 Kg
- Height Adjustment: 1120 - 1720 mm (center screen)
- Power Supply: 230 VAC 50-60 Hz
- Max Screen Size: 100" | Max Weight: 55 Kg
FSW-904M | Manual Single Column Trolley
- Dimensions (W x D x H): 900 x 560 x 1812 mm
- Net Weight: 55 Kg
- Height Adjustment: 1330 - 1730 mm (center screen)
- Max Screen Size: 85" | Max Weight: 55 Kg
FSW-Touch | Electric Height Adjustable Touch Table
- Dimensions (W x H x D): 1106 x 968-1643 x 768 mm
- Net Stroke: 675 mm
- Presentation Height: 1418 mm
- Max Mounting Range: W670 x H446 mm
- Angle Adjustment: -5° to 95°
- Power Supply: 230 VAC 50-60 Hz
- Max Screen Size: 100" | Max Weight: 65 Kg
IBF | Manual Balanced Furniture Trolley
- Dimensions (W x D x H): 950 x 600 x 1820 mm
- Cabinet Height: 819 mm
- Height Adjustment: 1085 - 1485 mm
- Max Screen Size: 85" | Max Weight: 50 Kg
Compatible Accessories
- Mounting Brackets: Compatible with Audipack universal, brand-related, and direct VESA mounts (M6, M8, M10 mounting cams available).
- Laptop Supports:
- For FSW-904E & FSW-904M (Ref: 390915 / 390916)
- For DFS-120E (Ref: P5355 - W 450 x D 365 mm)
- Cover Plate: DFS-CP featuring "soft edge finishing" for ergonomic protection (suitable for DFS-120E).
- Whiteboard Set: Available as a custom-made accessory (Ref: DWS-WS).
