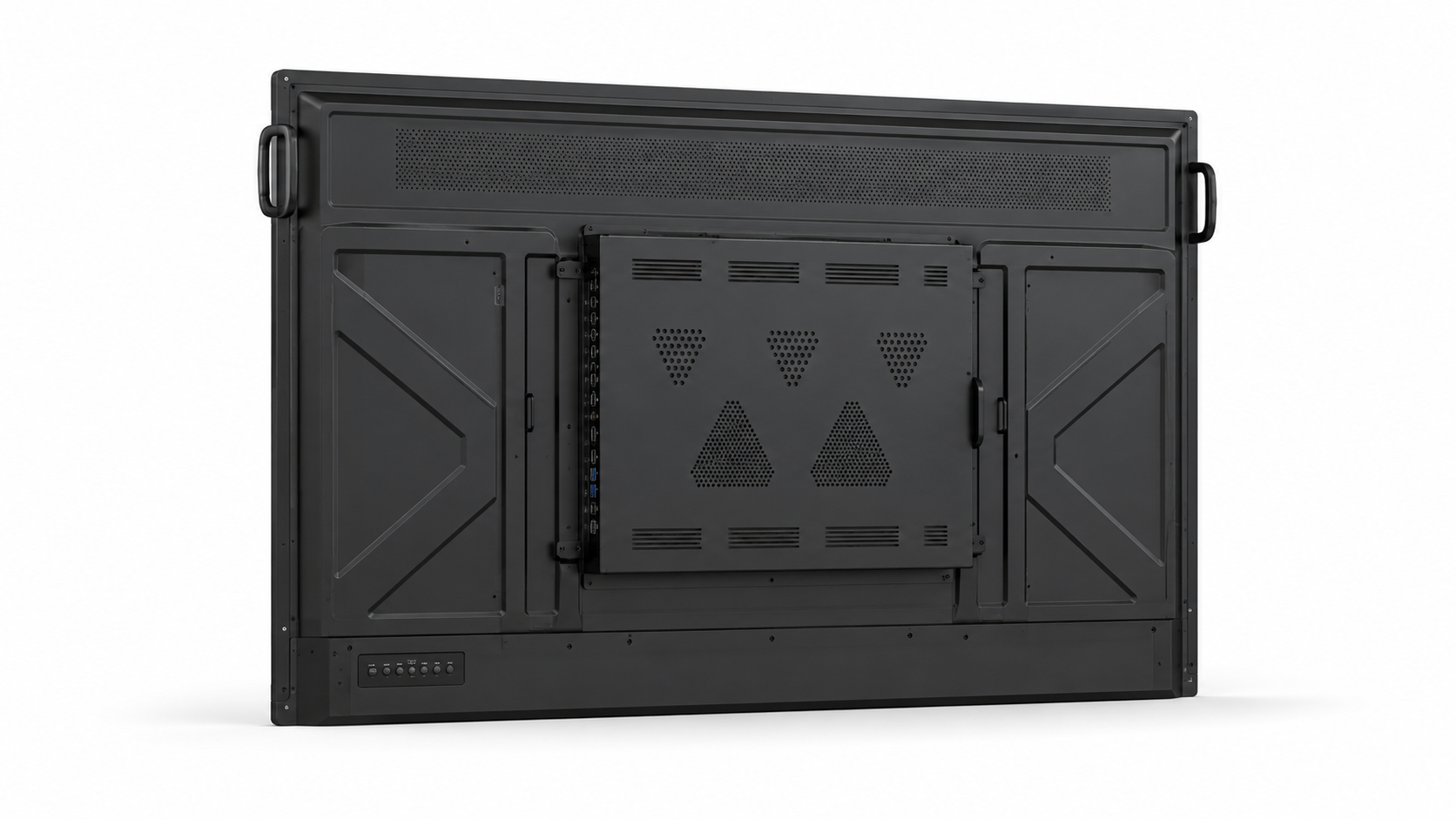

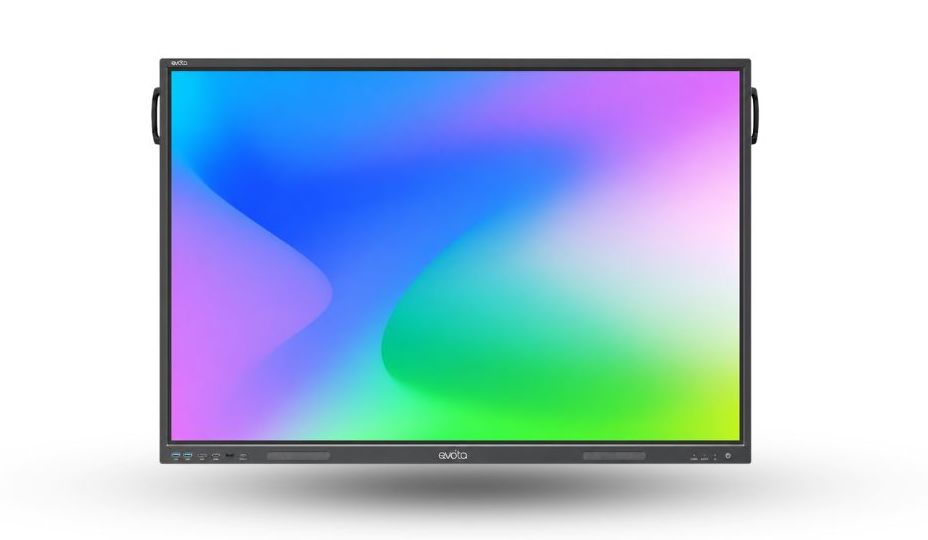

Evota EI Series | Interactive Touch LED Display
Product Overview
The Evota EI Series transforms the way you communicate, teach, and collaborate. Built for both dynamic business environments and modern classrooms, this cutting-edge interactive touch screen LED display provides a rich, multi-user experience. Featuring a stunning Ultra HD (3840 x 2160) resolution, this interactive panel brings presentations, educational content, and digital signage to life. Powered by an integrated Android operating system, you can plug in a USB drive and immediately start presenting, displaying documents, or annotating on the screen without needing a PC.
Key Features
- True Ultra HD Quality: Delivers breathtaking visual clarity with a 3840 x 2160 (Ultra HD) resolution on an IPS LED-backlit panel, ensuring crisp text and vibrant images.
- 10/20 Point Multi-Touch: Employs advanced infrared technology to support up to 20 touch points simultaneously, offering precision writing performance and allowing multiple users to interact at once using a finger or stylus.
- Android Powered: Features a built-in ARM Cortex A9 Dual Core CPU with 2GB RAM and 16GB storage. It easily runs common files like PDF, Word, Excel, PowerPoint, and video/images natively.
- Seamless Annotation: The embedded Note application lets you write, highlight, and edit over any application or file in real-time. Save your annotated work directly to internal memory or a USB drive to easily share via email.
- Instant Start-Up: Just switch on the display power and launch your files or the White-board application in less than 5 seconds.
- Built-in Audio: Comes equipped with powerful dual 12W front-facing speakers, eliminating the need for external audio setups in most rooms.
- Optional Detachable PC Module: Upgrade your display with an optional Intel Core i5 or i7 module featuring 4GB/8GB RAM, 500GB/1TB HDD, built-in WiFi, and Windows OS compatibility for a full PC experience.
- Mobile & Tablet Integration: Seamlessly connect mobile devices or tablets to wirelessly manage presentations, use your device as a touch pad, or capture photos directly to the display.
Technical Specifications
Feature | Specification |
Available Screen Sizes | 55" (EIWB55PC), 65" (EIWB65PC), 70" (EIWB70PC), 75" (EIWB75PC), 86" (EIWB86PC) |
Screen Technology | LED Backlit, IPS Panel |
Resolution | 3840 x 2160 (Ultra HD) |
Aspect Ratio | 16:9 |
Brightness | 450 cd/m² |
Contrast Ratio | 5000:1 (55", 65", 70", 75") / 1600:1 (86") |
Viewing Angle | 178° / 178° |
Touch Technology | Infrared, 10/20 Point Multitouch |
Protection Glass | AG Toughened Glass |
Built-in OS | Android, ARM Cortex A9 Dual Core CPU, 2GB RAM, 16GB Storage |
Speaker Output | 12W x 2 |
Power Supply | AC 100-240 Volt 50 Hz |
Connectivity Interfaces
- Inputs: 3 x HDMI, 1 x VGA (D-SUB DB15), 1 x Audio, 1 x DP IN, 1 x AV (Composite Video)
- Outputs: 1 x HDMI, 1 x COAX, 1 x Audio
- Control/Data: RJ45 LAN, RS232, 4 x USB 2.0, 2 x USB 3.0, 2 x USB Type B for Touch
Ideal Applications
- Conference & Huddle Rooms: Enhance meetings by sharing, annotating, and saving documents directly from a pen drive—no PC required.
- Classrooms & Training Rooms: Create a fun, dynamic learning environment where teachers can display multi-media and students can interact directly with the board.
- Video Conferencing: Use it as a large video display while utilizing PIP mode to take real-time minutes on the board.
- Public Information & Control Rooms: Highly reliable for digital signage, information kiosks, and corporate control rooms.
Standard Accessories Included
- AC Power Cord
- Remote Control
- Wall Mount Bracket
- VGA, USB, and Audio/Video Cables
