MAXHUB OPS72A-15 | Open Pluggable Specification (OPS) PC Module
Product Overview

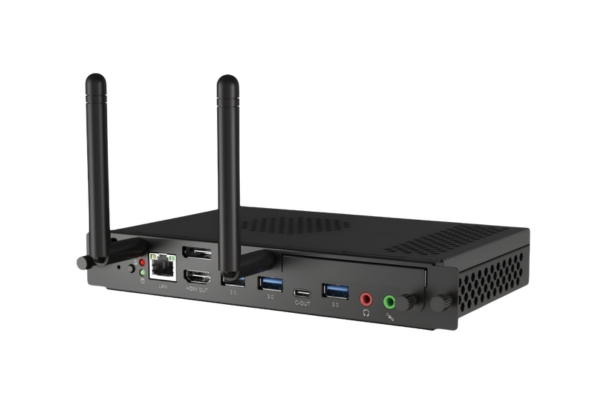

The MAXHUB OPS72A-15 is a high-performance Open Pluggable Specification (OPS) computer module designed to seamlessly integrate with compatible interactive flat panels and commercial displays. Powered by a robust 13th Generation Intel® Core™ i5-13420H processor and pre-loaded with Windows 11 Pro, it instantly transforms your display into a powerful, all-in-one computing powerhouse. Whether you are running demanding enterprise applications, high-resolution video conferencing, or complex educational software, this module delivers lightning-fast speed and exceptional graphical performance.
Key Features
- Powerful 13th Gen Processing: Equipped with an Intel® Core™ i5-13420H processor featuring 8 cores and 12 threads, reaching maximum frequencies of up to 4.6 GHz for smooth multitasking.
- Rapid Memory & Storage: Comes with 8GB of Dual-channel DDR4 3200MHz RAM and a fast 256GB SSD, ensuring quick boot times and snappy application launches.
- Stunning Graphics Support: Integrated Intel Iris Xe Graphics combined with DisplayPort (DP) out supports breathtaking resolutions up to 7680x4320 @ 60Hz, while the HDMI 2.0 port supports crisp 4K (3840x2160 @ 60Hz) visuals.
- Advanced Wireless Connectivity: Features a built-in M.2 2230 WLAN module supporting dual-frequency (2.4G/5G) Wi-Fi 6 (802.11a/b/g/n/ac/ax) and Bluetooth 5.2, capable of max speeds up to 2.4Gbps.
- Standard 80-Pin OPS Interface: Plugs directly into standard 80-pin OPS slots for a cable-free, elegant integration that passes power, display, and USB signals straight to the screen.
- Extensive Front I/O: Offers a wealth of connectivity on the front panel, including four USB 3.0 ports, one USB Type-C port, Gigabit Ethernet, HDMI, DP, and dedicated audio in/out jacks.
Technical Specifications
Core Computing
Feature | Specification |
CPU | 13th Generation Intel® Core™ i5-13420H (8 Cores, 12 Threads) |
Processor Frequency | 2.1 GHz Base / 4.6 GHz Max |
Processor Cache & TDP | 12MB Cache / 45W TDP |
Memory (RAM) | 8GB Dual channel DDR4 3200MHz (260-pin SODIMM) |
Storage (ROM) | 256GB SSD |
Graphics | Intel Iris Xe Graphics |
Operating System | Windows 11 Pro |
Interfaces & Connectivity
Feature | Specification |
Front USB Ports | 4 x USB 3.0, 1 x USB Type-C |
Front Video Output | 1 x HDMI 2.0 (Max 3840x2160 @ 60Hz), 1 x DP (Max 7680x4320 @ 60Hz) |
Front Audio | 1 x MIC In (Pink), 1 x Line Out (Green) |
Networking | 1 x RJ45 LAN (10/100/1000M) |
80-Pin OPS Interface | HDMI 2.0 x1, DP x1, USB 3.0 x1, USB 2.0 x1, 12-19V DC Power |
Wireless & Bluetooth | 802.11a/b/g/n/ac/ax 2T2R + BT5.2 (Dual frequency antennas) |
Physical & Environmental
Feature | Specification |
Product Dimensions (L x W x H) | 180 x 119 x 30 mm |
Net Weight | 0.6 kg |
Power Supply | 80Pin OPS interface power supply (Input: 12-19V) |
Power Consumption | Max: 80.7W / Standby: 2.9W |
Operating Temperature | -10°C to 45°C |
Operating Humidity | 10% to 90% RH |
