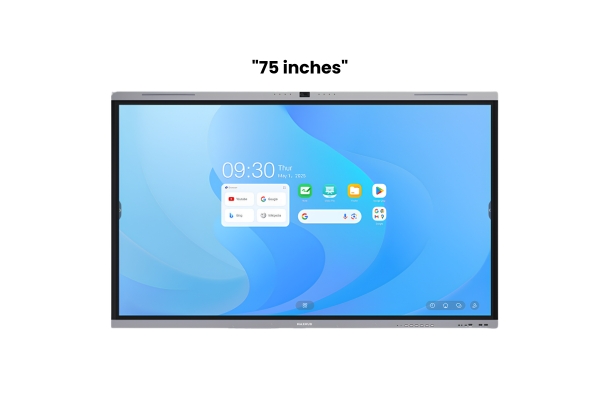

MAXHUB 75" Interactive Flat Panel U4 Series (Model: U7540)

Unleash Learning. Redefined Possibilities.

Product Overview

Step into the future of large-format collaboration with the 75-inch MAXHUB U4 Series (Model: U7540). Engineered to bridge the gap between dynamic classrooms and premium corporate boardrooms, this interactive flat panel lets you switch between dedicated Education and Corporate UI modes with just one click. Powered by the secure and ultra-stable MAXHUB EDU OS, the display is fully Google EDLA-certified and runs on Android 15, providing native, seamless integration with your favorite tools like YouTube, Google Classroom, and the Google Play Store.

Core Highlights & Key Features

• 8-Core Performance Unleashed: Power through complex applications with an advanced 8nm process chip featuring an 8-Core CPU (A76x4 + A55x4 at 2.4GHz) and a dedicated 6 TOPS NPU. Delivering 6X the performance of standard quad-core chips, it enables effortless multitasking and accelerated AI capabilities.

• Massive Memory & Local Storage: Multi-task seamlessly with a generous 16GB of ultra-large RAM—perfect for running background screen recordings or managing hybrid video streams without lag. Built-in 256GB storage (expandable up to 1TB) easily stores up to 60,000 lecture slides or 400 hours of video resources.

• Brilliant 75" Visuals, Healthy Eyes: Experience unmatched display precision with a 98% sRGB wide color gamut and 1.07 billion colors (10-bit). Production-level manual calibration ensures a pro-grade color accuracy of Delta E < 1. Maximize clarity under bright lights with a powerful 500 nits maximum brightness and a deep 5,000:1 static contrast ratio.

• True Flicker-Free Tech: Say goodbye to headaches and eye strain. Unlike PWM dimming screens that use rapid on/off light cycles, the U7540 utilizes DC Dimming to adjust brightness directly, earning full TÜV Flicker-Free and TÜV Low Blue Light certifications.

• 50MP Ultra-HD Camera with AI: Perfect for hybrid environments, the integrated 50MP camera comes with a 115° wide-angle lens (115° DFOV) to easily cover the entire room. Built-in AI functions handle Auto Framing, Speaker Tracking, Person Counting, and Random Selection.

• SkyWave Sound System: Enjoy crystal-clear, room-filling 2.2 channel audio pumped through a four-speaker setup delivering up to 2x12W + 2x25W maximum power. The 8-microphone array tracks audio in a 180° angle up to a 12m range, optimized by AI Spatial Sound, Auto Echo Cancellation (AEC), and AI Noise Reduction (ANC).

• MAXHUB Think & Ink Technology: The premium 9H scratch-resistant glass surface reduces writing friction by 40%. The infrared touch system maps up to 50 touch points with an industry-leading ±0.5mm accuracy and a 2.5ms response time. Features include Perceptive Palm Rejection, Direct Annotation, Sharp Erase, and Pressure Sensing.

Durability & Seamless Connectivity

The MAXHUB U7540 is built for heavy-duty daily use with an IP5X dustproof design and comprehensive antibacterial protection layered across the screen surface, stylus, and hardware buttons.

It simplifies your workspace with a highly versatile USB Type-C port that handles peripheral linking, lightning-fast data transfer, and up to 100W Power Delivery (PD) to charge your laptops or tablets over a single cable. It also features native Wi-Fi 6 support and frictionless BYOD capabilities.

Technical Specifications (U7540)
